| Spesifikasi |
| MODEL |

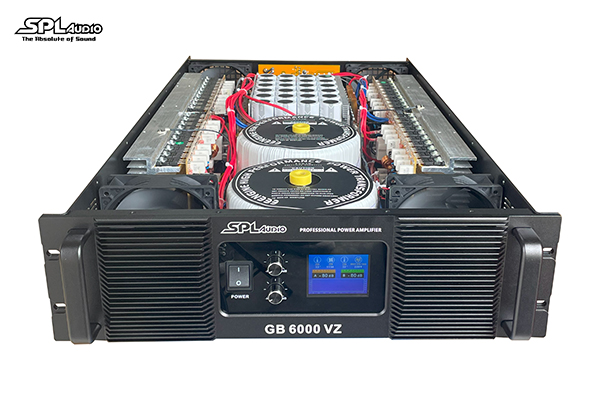

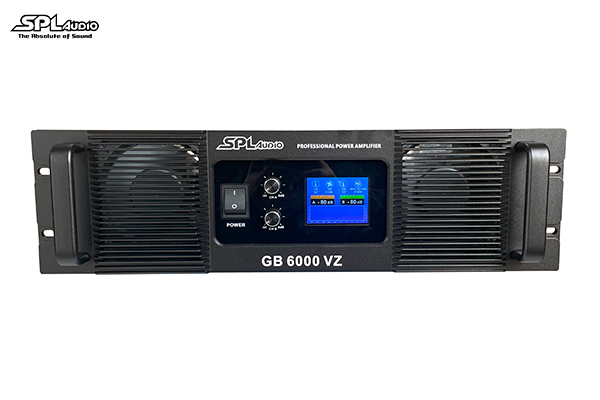

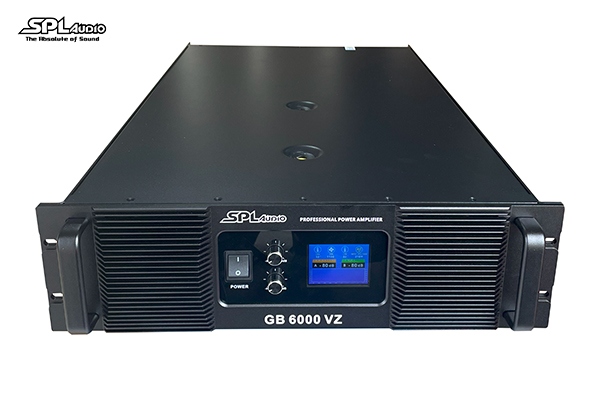

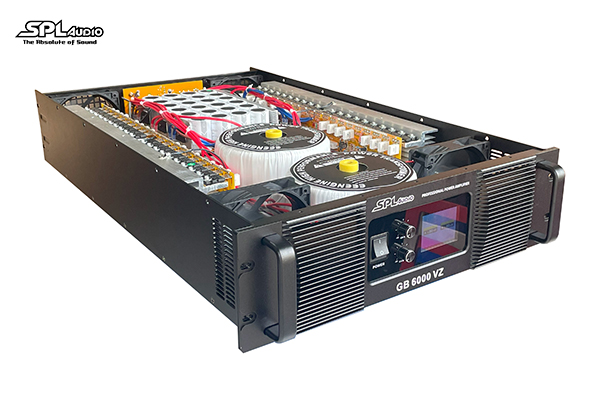

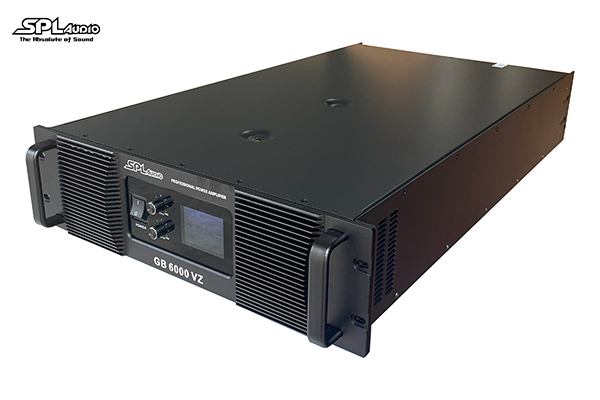

GB 6000 VZ |
| OUTPUT POWER STEREO 8Ω |
4000W+4000W |
| OUTPUT POWER STEREO 4Ω |
6000W+6000W |
|
9000W+9000W |
| BRIDGE 8Ω |
8000W |
| BRIDGE 4Ω |
12000W |
| FREQUENCY RESPONSE |
20Hz-20KHz-1.5dB |
| INPUT SENSITIVITY |
0.775V/1V/1.44V |
| SIGNAL/NOISE RATIO |
>95dB |
| CROSSTALK 1kHz OUTPUT POWER 8Ω |
>75dB |
| DAMPING FACTOR |
>1200 |
| PROTECTION |
SHORT CIRCUIT, CURRENT LIMITED, DC FAULT, AC LINE FUSE, THERMAL CUT, VOLTAGE LIMITED |
| INDICATORS |
POWER, PROTECT/CLIP, -3dB, -15dB, -30dB, SIGNAL |
| COOLING |
Four Fan |

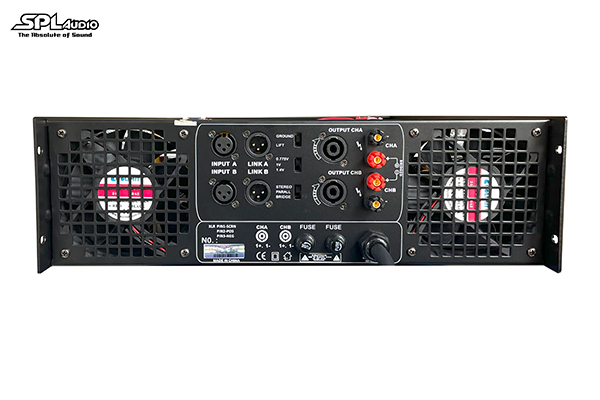

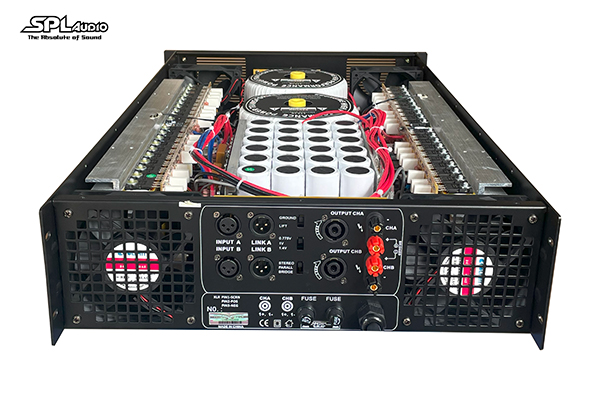

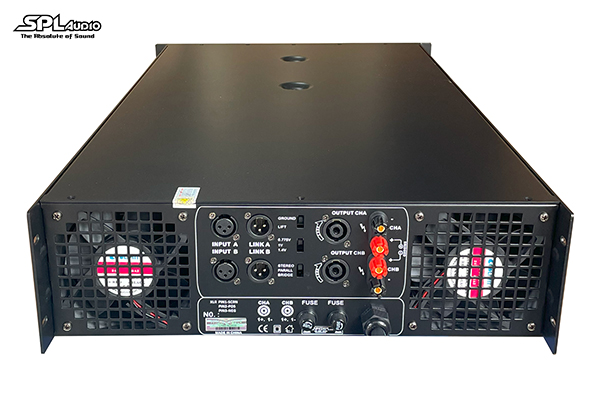

| CONNECTOR |
BAL XLR INPUT, BAL XLR LINK, SPEAKON, 5 WAY BINDING OUTPUT |
| POWER CONSUMPTION (HALF POWER 8Ω) |
<8500W |
| POWER SUPPLY |
17000W AC230V/50Hz |
| DIMENSIONS (WxDxH) |
635mm x 960mm x 215mm |
| NET WEIGHT |
60 KG |
| GROSS WEIGHT |
66 KG |
