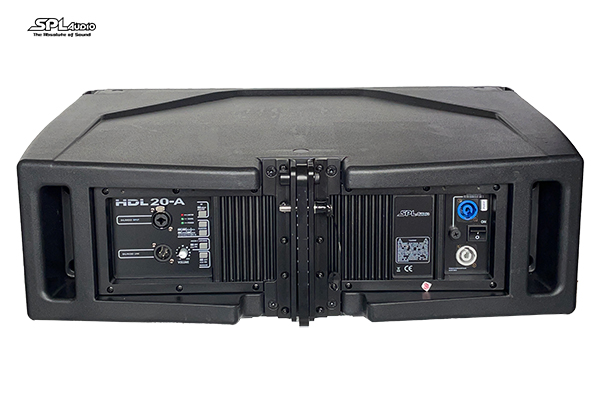

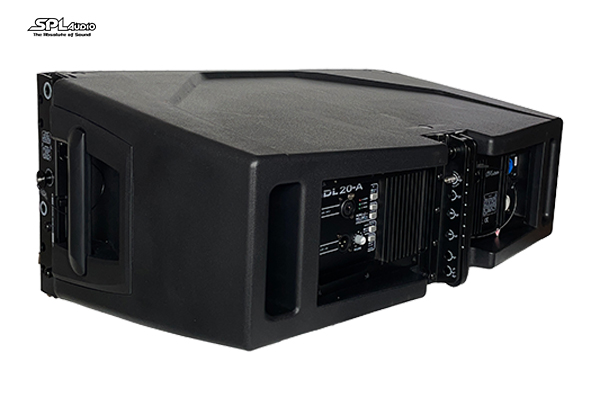

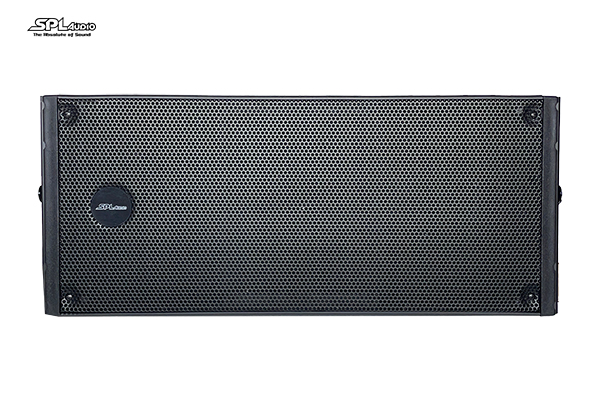

HDL 20-A

Acoustical specifications

Frequency Response : 55 Hz ÷ 20000 Hz
Max SPL @ 1m : 135 dB
Horizontal coverage angle : 100°
Vertical coverage angle : 15°

Transducers

Compression Driver : 1 x 2.0″, 3.0″ v.c
Woofer : 2 x 10″, 2.5″ v.c

Input/Output section

Input signal : bal/unbal
Input connectors : XLR
Output connectors : XLR
Input sensitivity : -2 dBu / +4 dBu

Processor section

Crossover Frequencies : 800 Hz
Protections : Thermal, RMS
Limiter : Soft Limiter
Controls : Cluster, HF, High curving, Indoor

Power section

Total Power : 1400 W Peak, 700 W RMS
High frequencies : 400 W Peak, 200 W RMS
Low frequencies : 1000 W Peak, 500 W RMS
Cooling : Convection
Connections : Powercon IN / OUT

Standard compliance

Safety agency : CE compliant

Physical specifications

Cabinet / Case Material : PP Composite
Hardware : Rigging flyware
Handles : 2 side, 2 back
Grille : Steel
Color : Black

Size

Height : 294 mm / 11.57 inches
Width : 705 mm / 27.76 inches
Depth : 445 mm / 17.52 inches
Weight : 30.2 kg / 66.58 lbs
