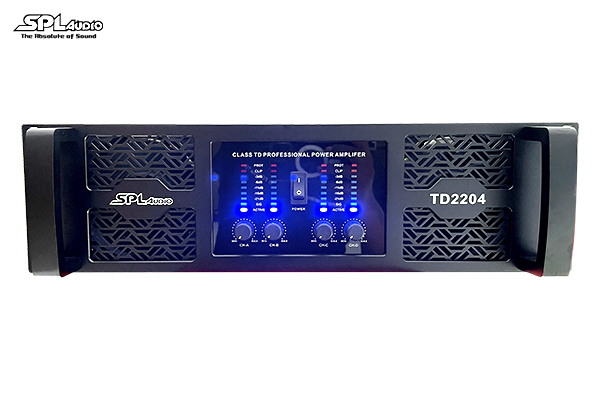

TD2204

Stereo Power 2Ω	4 x 4400W
8Ω BTL	2 x 6600W
4Ω BTL	2 x 8800W
Frequency Response	5-50K ±0.5dB
THD+N	<0.05%@8Ω1/3Po
S/N Rasio	>102dB
Slew Ration	45V/uS
Damping Factor	>400
Crosstalk	>65dB@8Ω1KHz
Input Impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input Sensitivity	0.775V / 1.0V / 1.4V
Protect	Overheat short circuits, DC, limit and– softstart, Output relay–Zero Current Switch, Intellectual Clip limiter
Heigh	3U
Gross Weight	48KG
Dimensions	773×582×203MM
