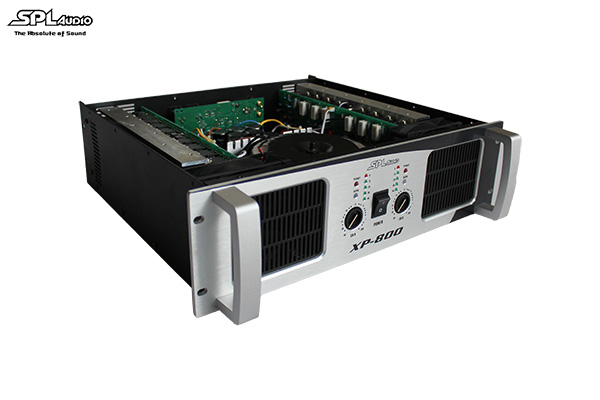

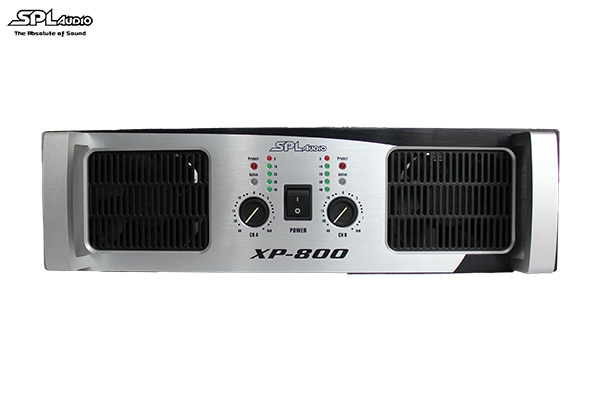

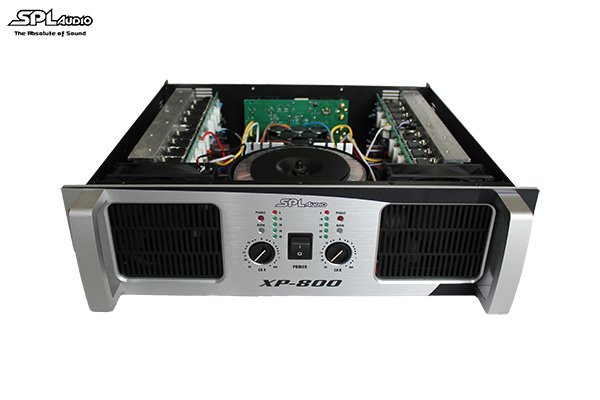

Home / XP800 XP800 Model : XP-800 8 Ω Stereo Power : 2 × 800W 4 Ω Stereo Power : 2 × 1200W 8 Ω Bridged Mono Power : 2400W Frequency Response (+0/-0.3dB , 1W/8Ω) : 20Hz-20kHz, -30dB@135kHz Tour Class Protection : ACL, IGM, Ampere, Short Circuit, DC voltage, turn-on/ off transient, current inrush, sub/ ultrasonic input THD+N (rated power, 4 Ω/1kHz) : <0,01% SMPTE IMD (rated power,8 Ω, 60 Hz & 7kHz) : <0,01% Damping Factor (10-400Hz at 8Ω) : 800:1 Input CMRR (1kHz) : > -60dB Standard Input Sensitivity (rated power at 8Ω) : 0,775V Standard Voltage Gain (rated power @8) : X61 Input Impedance (balanced/unbalanced) : > 20K Ω/ > 10KΩ Hum & Noise ( “A” weighted, full power at 4Ω) : -105Db Crosstalk ( “A” weighted, full power at 4Ω) : > – 60db (Height x Width x Depth to rear rack ears) : 200 × 585 × 655 mm Max RMS Output Voltage (each channel) : 90V Max Peak Output Voltage : 126V Input Connectors (per channel) : Female XLR (pin 2+, configurable for pin 3+), TRS (tip+) Output Connectors (per channel) : 5-way binding posts (2 pair on Ce4000) or Speakon connectors (market dependent) Filter Storage : µ F 120000 Power Supply (factory configured) : 220V ,50-60Hz Thermal Emissions (1/8 Power ,4Ω) : 4750 BTU/hr Thermal Emissions (1/3 Power ,4Ω ) : 6300 BTU/hr Cooling : Two rear panel variable speed DC fans; filters detachable without tools Controls : Front panel : 2 attenuators, magnetic circuit breaker/power switch; Rear panel: signal ground lift & mode switches; TS-800: XLR polarity & inputsens. / voltage gain switchs) LED Indicators (per channel) : Clip/Limit, Signal, Temp/DC, Active Construction Dimensions : Steel chassis, 16 gauge. Double thickness in rack ear areas. Gross Weight : 29,5 kg Net Weight : 25,5 kg Warranty : 1 years Class : Class AB
